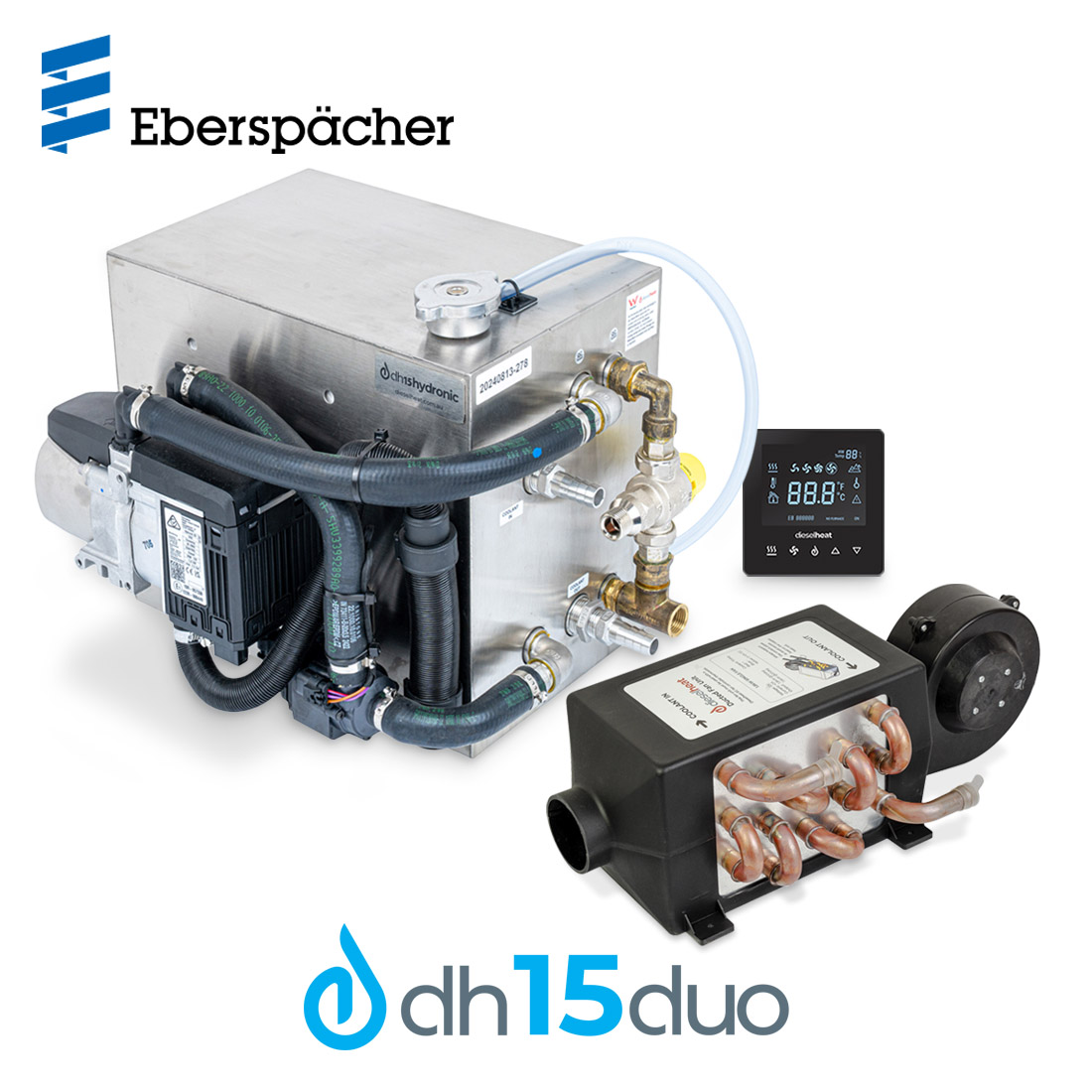

THE DH15Duo IS A COMPACT INSULATED DIESEL HOT WATER AND AIR HEATING PACKAGE FOR MOTORHOMES, CARAVANS, OFF ROAD TRUCKS AND SMALL TO MEDIUM BOATS
The DH15Duo combines Dieselheat’s DH15 hot water system with our own 1.8kW ducted fan and thermostat to provide a compact hot water and air heating package.
Key System Features
- Quite, reliable German Eberspacher furance 1.3kW to 5kW output in 32 power levels
- Easy to use thermostat to control air heating and turn hot water on/off
- Compact, with separate air heating and hot water components allows flexible install arrangements
- Automatic coolant shutoff to air heating when not in use (to minimise unwanted heat)
- Fast heat and re-heat times – suits family use
- Quiet and powerful (1.8kW) air heater
See here to compare size, weights and available hot water between different DH Hydronic systems.
The DH15Duo is sold mostly pre assembled and tested for easy installation.
DH15Duo kit suits installations where the fan heater is within 1m of the hot water system and no more than 0.5m above it. For setups where the fan head is further away speak to Dieselheat about a custom kit.

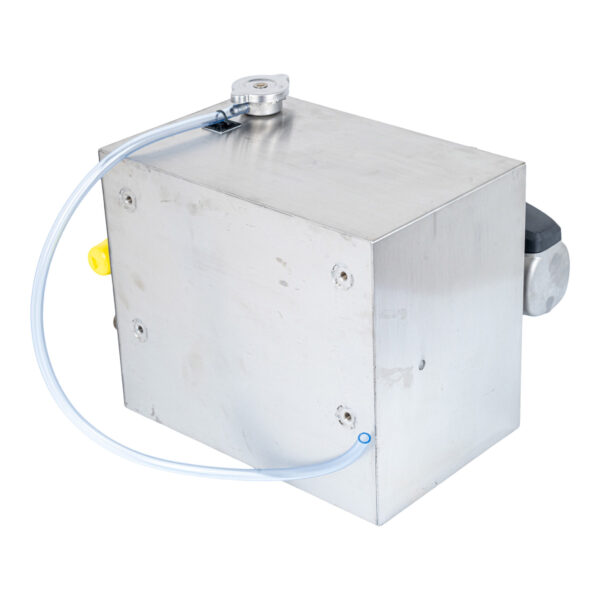

The DH15 Features
- Reliable, quiet Eberspacher furnace is best in class with silent fuel pump and 3000h service life.
- Stepless power output from 1.3 to 5kW
- All 316 stainless steel, suitable for caravans and boats
- Insulated dual skin tank retains heat for efficient operation
- DH15 is Pre assembled and tested for easy installation

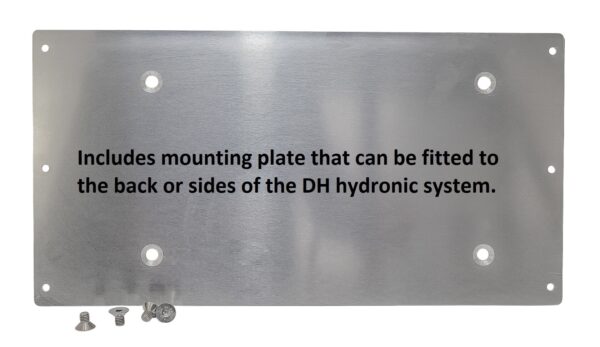

- Includes mounting plate and silicon floor plate to seal exhaust through the floor
- Fast heat up time, around 9-10min from cold
- Includes Watermark approved tempering valve and plate heat exchanger to ensure hot water is always delivered at safe temperatures

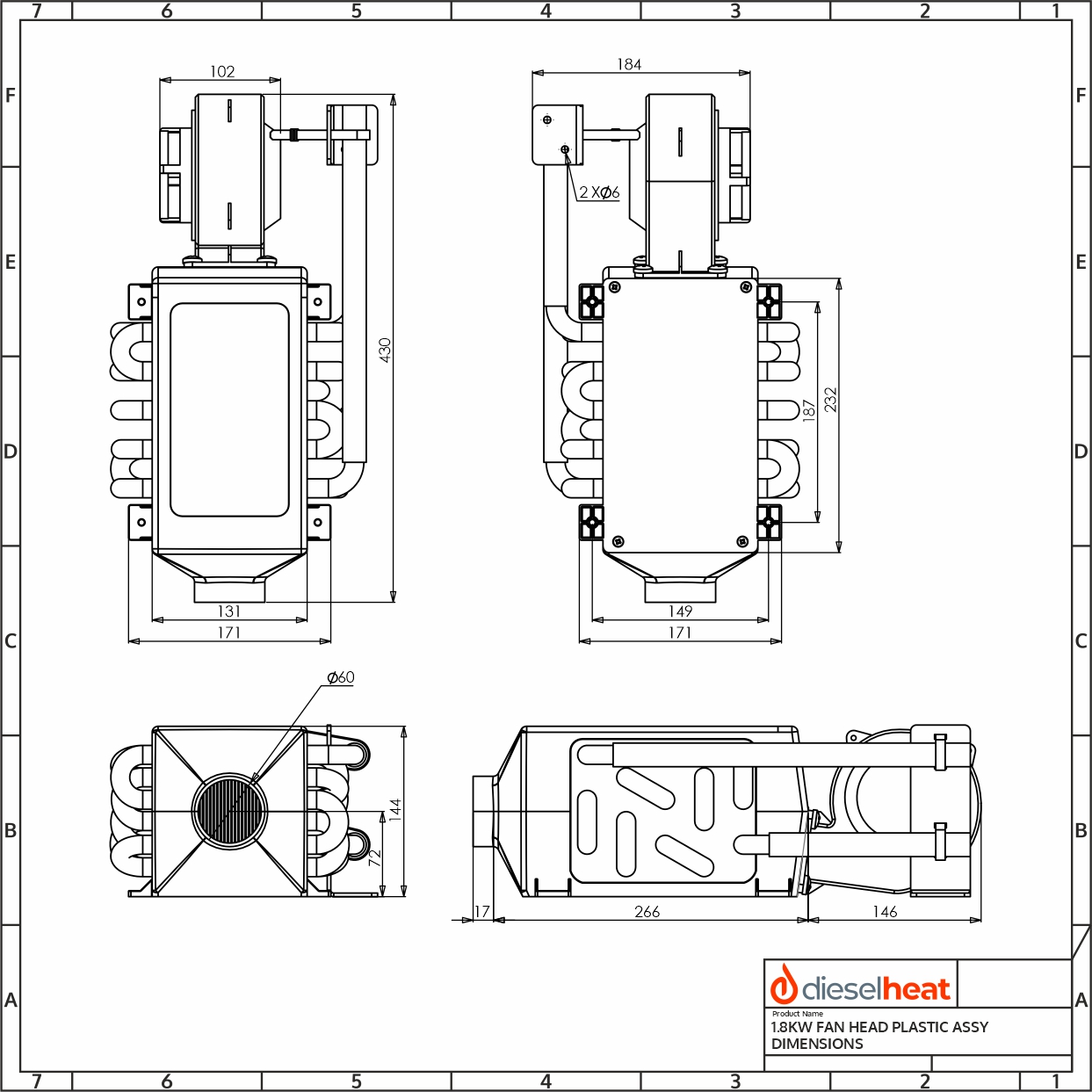

The 1.8kW Ducted Fan Features
- High quality copper coolant pipes optimised for maximum heat output
- Quiet electrically controlled brushless AC drum fan
- Aluminum case lined with specialised sound absorbing foam/vinyl
- Fan orientation can be changed for installation in tight spaces.
- 1 x 60mm outlet
- optional 90mm inlet duct
Touch Screen Thermostat Features
- Simple operation via touch screen
- Backlit screen/buttons
- 3 manual fan speeds and automatic mode with infinitely variable fan speed
- Optional remote temperature probe (supplied in kit)
- Operate in either hot water only or hot water and air heating modes.
- 5m wiring loom and mounting kit
- Automatic control of electric coolant valve for air heating
- Programmable parameters include manual fan speeds, min and max fan speeds on auto mode, sensitivity on auto mode.
NEW in V3- Eberspacher D5E HS3 CAN Functions
- Detect furnace or indicate if furnace not present
- Read and display fault codes
- Delete fault codes
- Activate high altitude mode
DH15 System Performance
Time to useable hot water from cold start: 9min
Time to fully hot: 14min
Regeneration time between showers: 7min
Length of shower assuming 30 degree temp rise using Dieselheat shower heads:
Bricor UltraMax 2.5L/min @ 40PSI: >15min
Bricor Elite 4L/min @ 40PSI: 7min
Length of time the system can achieve a 30 deg temperature rise:
2L/min – >15min
3L/min – 13min
4L/min – 6min
5L/min – 3 min
These numbers are all affected by ambient temperature, installation layout and assume no concurrent air heating, so should be taken as a guide.
Ducted Fan Unit Performance
Output: 1.6kW output @ 20 degrees ambient; 1.8kW output @ 10 degrees ambient
Power: less than 2A on high.
Comprehensive Installation Kit
This kit includes all mounting brackets, plug and play wiring looms, coolant pipe (for fan head up to 1m from hot water system), fuel line, exhaust system, coolant fittings etc. needed to install the system and get it up and running. All Dieselheat system also include comprehensive printed installation instructions written by the system creators in simple to understand English to assist first time installers.
Pair the DH15Duo with our range of water efficient shower heads or digital temperture mixing valves. For shower options see here.
